PEDESTRIAN BRIDGE ACROSS HENDERSON ROAD

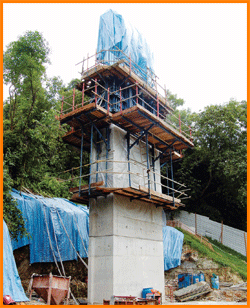

Located at Henderson Road, this pedestrian scenery bridge was constructed to link across the Mount Faber Park and the Telok Blangah Hill Park. The bridge is estimated 50m long with the column piers from 3,500mm to 29,000mm in height.

The Architectural requirements were very stringent and special attention had to be paid to tie holes, joints and chamfer details.

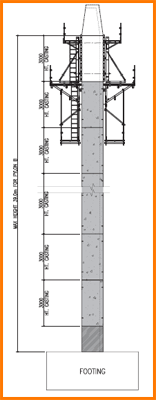

The vertical formwork was designed for an F3 steel face fi nish with crane handled assisted for lifting purposes. At the top of the formwork, special designed pylon formwork is fi tted to complete the fi nal cast of the Pier before launching the steel structure bridge onto it.
